James Walker Flood Defences

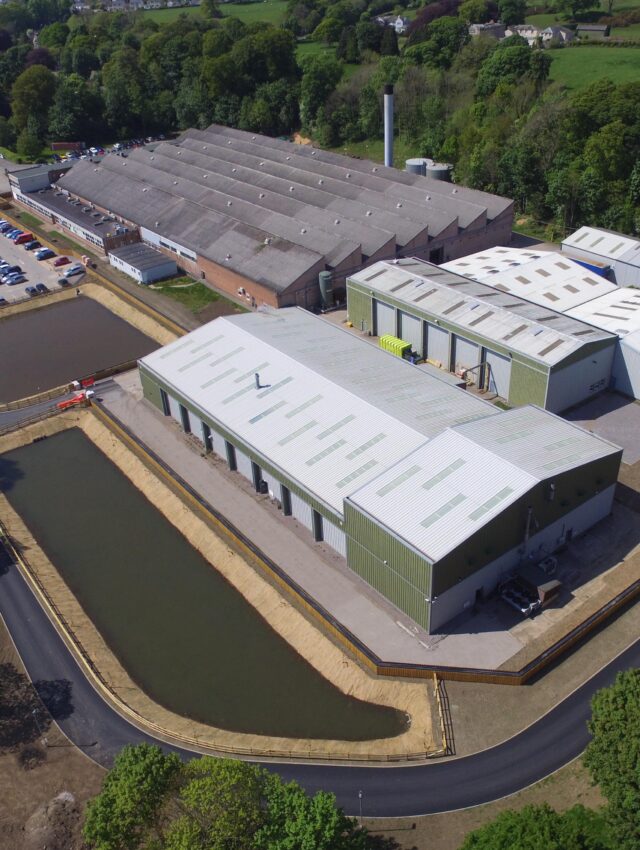

Story carried out works to install flood protection measures which would protect James Walker & Co’s facility in Cockermouth from a ‘one in 1000’ flood event.

11068m³ factory area
protected by flood wall

360 litres per second
pumping station combined flow rate

The Scope

The main scope of works for the project included:

  • Extensive earthworks to reduce ground levels prior to works
  • Installation of 900 sheet piles to create a flood wall around the site’s production buildings, each driven 5m down to reach bedrock to prevent ground flow
  • Installation of 3no motorised hydraulic vehicle access floodgates

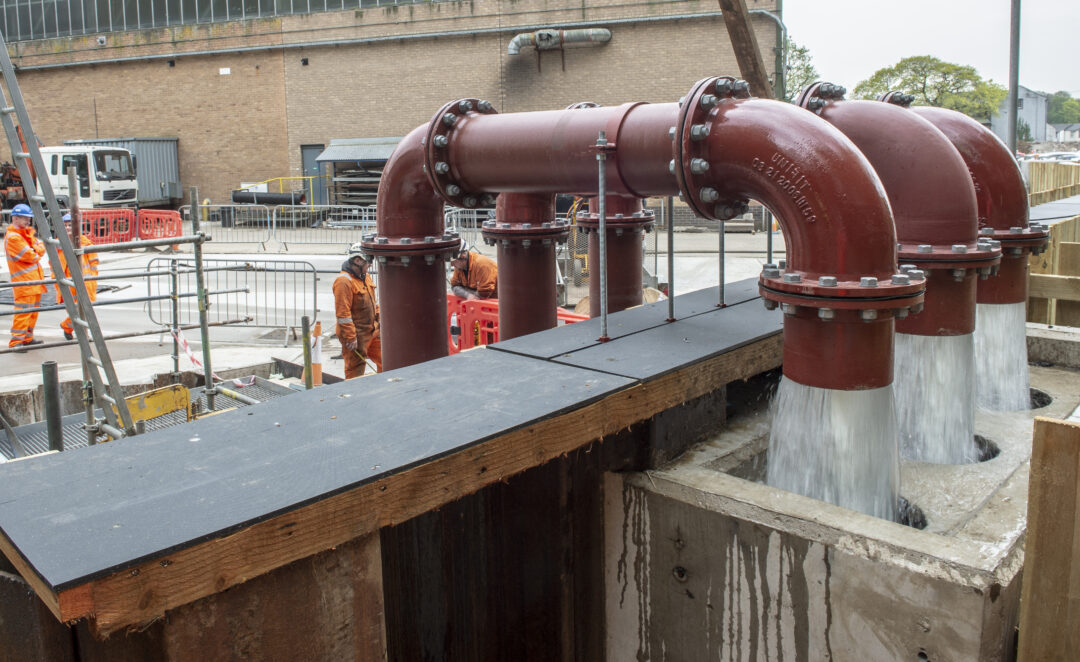

  • Installation of 2no pumping stations with the capacity to pump over 21,000 litres of water per minute
  • Construction of new internal roadway
  • Construction of two large flood plain loss compensating swales with a capacity of over 11,000m³
  • New stonewalling at site entrance, bordering a new 20-space overflow car park

The Story Way

Throughout the project, the Story team worked collaboratively with James Walker, ensuring the construction phasing maintained uninterrupted factory production. The project was repeat business having being recommended by designers Cluttons LLP, after the successful completion of McVities flood defence works in Carlisle.

As part of our commitment to ’doing it right’, we pride ourselves on assisting our clients with cost efficient design enhancement solutions, our quality control and aftercare service.

Story were very professional in their approach, through from the bidding process to commencing work, to final completion. They have good project management skills and good attention to detail.

Mark Brook James Walker & Co Ltd
